      How do I connect the ScreenBeam Mini 2 to my HDTV?

      Please use the following steps:

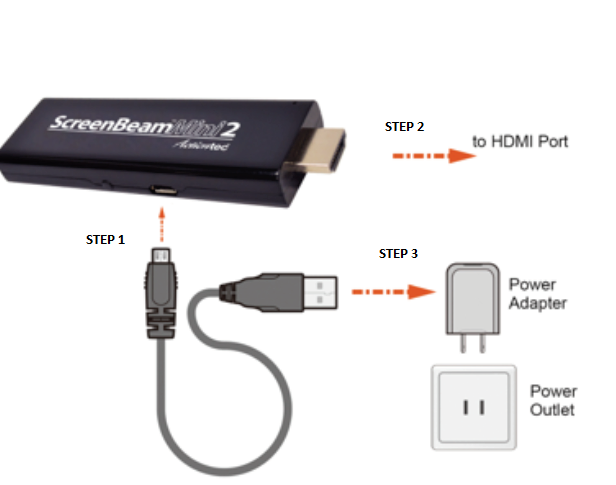

      Get the ScreenBeam Mini 2, USB cable, power adapter, and the HDMI extension cable from the Receiver’s package.

      1. Plug the small male connector of the USB cable to the Power port on the Receiver.
      2. Plug the Receiver into an available HDMI port on the HDTV

      Optional:  Use the HDMI extension cable at this time to connect the ScreenBeam Mini 2 to the TV. Simply connect the female end of the extension cable to the Mini 2, and the male end of the cable to the TV.

      1. Plug the large male connector of the USB cable to the power adapter, and plug the power adapter into a power outlet.
