How do I change the static IP address of the ECB?

These instructions will walk you through how to change the default static IP address that is set on the ECB by default at the factory.

1. Connect an Ethernet cable from your Computer/Laptop directly into the Ethernet port of the ECB.
2. Plug the power adaptor into the ECB.
3. WARNING: Do not have a coax cable connected to the ECB; we only want to change the configuration of one ECB at a time. Since they all share the same default IP address of 192.168.144.200, we need to make sure which one we are connected to.
4. Open a web browser and type in 192.168.144.200 into the address bar and press "Enter". You should see the login screen below.
5. Note: Since this device was also sold by our sister company, Actiontec there may be some variations in the default password. The easiest way to tell what the default password might be is by looking at the company name on the device.
   1. If your device says Actiontec ECB, the default username will be "actiontec" without the quotes.
   2. If your device says ScreenBeam ECB, the default password will be "screenbeam" without the quotes
   3. No matter which company made your device, the default username will always be "admin" without the quotes.
   4. The username cannot be changed.
6. Click "Sign In." If the login prompt returns, that means you have entered the wrong username and or password and will have to try again. If you have tried both password combinations, you may need to restore this unit to factory defaults.

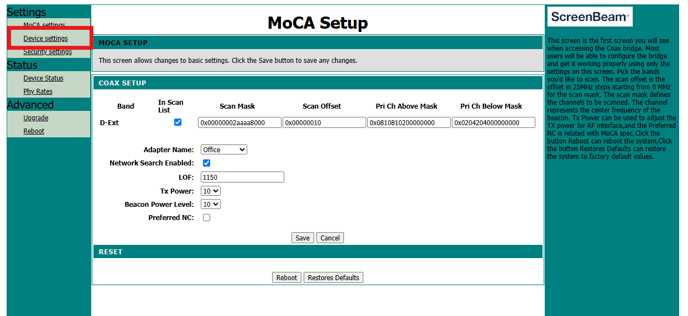

7. Select Device Settings from the menu on the left-hand side.

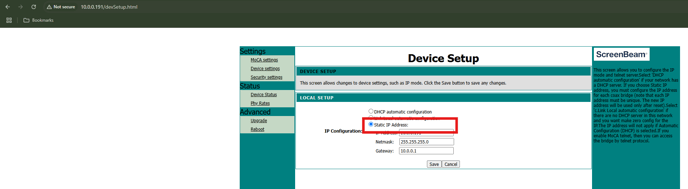

8. Select the option for “Static IP Address”
9. Enter your static IP information. I.e, IP address, Netmask, and gateway address. The ECB only supports IPv4 addresses.

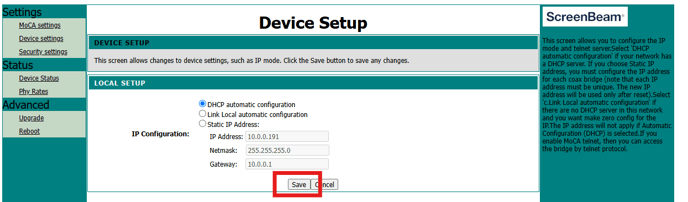

10. Select Save
11. The device is now set to DHCP and will need to be rebooted.
